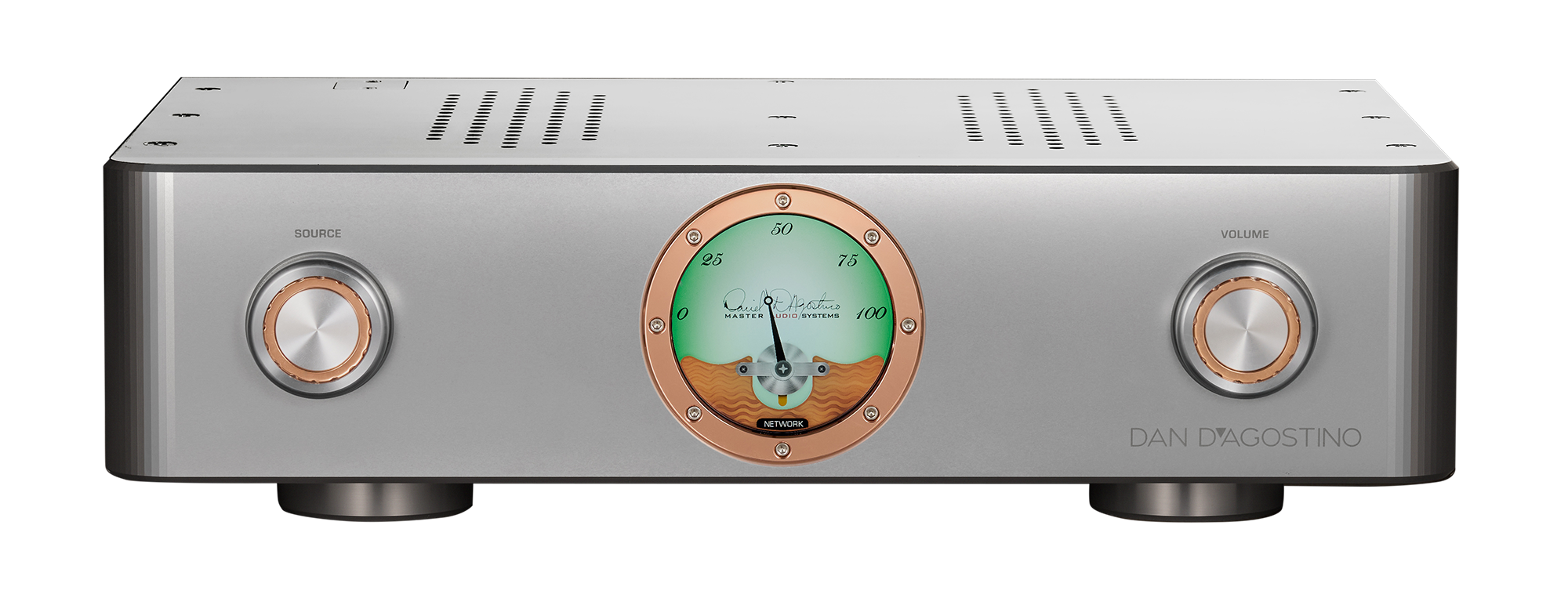

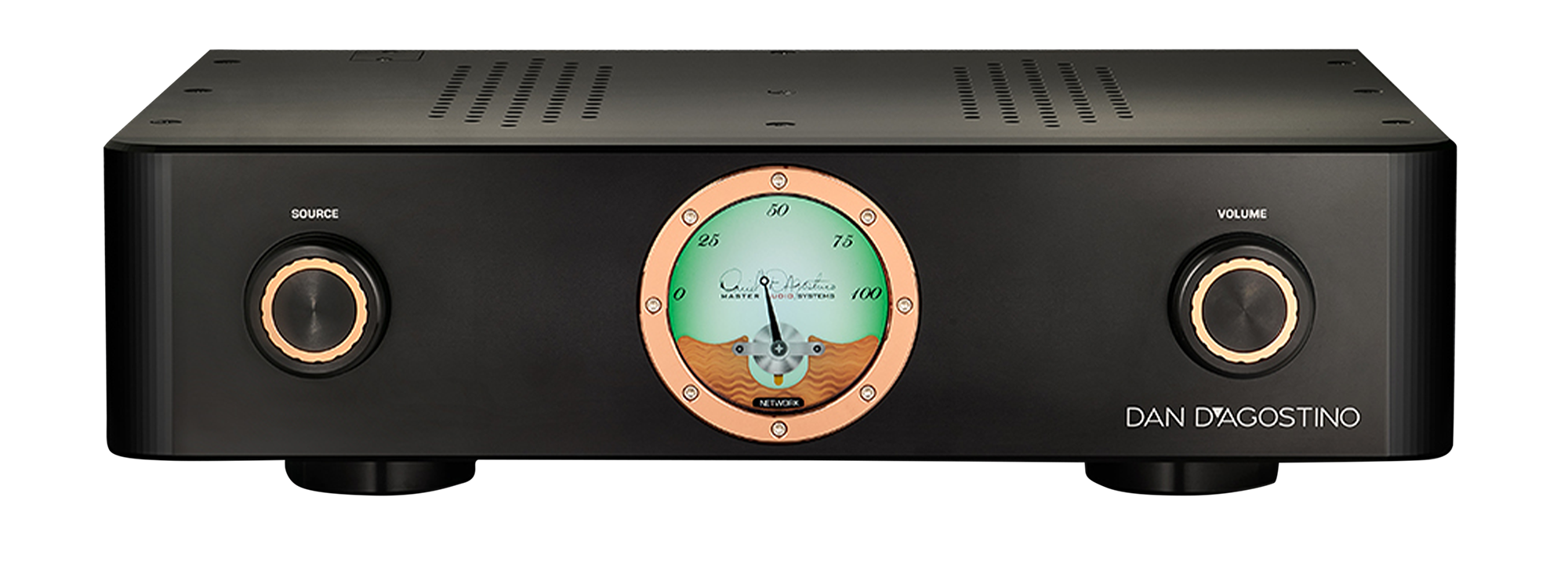

Pendulum Integrated Amplifier

The gateway to serious sound

Versatility. Elegance. Exquisite Sound.

At the heart of the Pendulum Integrated Amplifier lies the ingeniously re-engineered JFET input circuit topology, derived from the acclaimed Momentum C2 Preamplifier. This innovative technology upgrades the performance and precision of the entire platform, guaranteeing an immersive listening experience that transcends expectations from a component its size.

Exceptional Power Supply

Driven by a custom toroidal transformer rated at 750VA and complemented by a nearly 25,000 μF capacitor bank, the Pendulum Integrated Amplifier delivers robust power output within a compact design. This advanced power supply ensures stable performance and minimizes distortion, allowing the amplifier to effortlessly drive challenging loudspeakers to their full potential.



Versatile Connectivity

Seamless integration with a variety of audio sources is key to the Pendulum’s versatility. Analog connections include one single-ended input for turntable use and three balanced inputs, one with theater pass-through. Balanced preamplifier outputs allow for effortless integration of subwoofer(s), providing maximum flexibility to tailor your sound experience. Additionally, an optional moving-coil phono module accommodates turntable playback, catering to vinyl enthusiasts with exceptional performance.



Digital Capabilities

The Pendulum Integrated Amplifier can be optionally equipped with a comprehensive suite of digital connections, ensuring seamless integration with modern audio sources and systems. Featuring optical and both RJ45 and Wi-Fi network connections, it offers unparalleled connectivity options. Notably, it is the first D’Agostino component to include an HDMI input with eARC functionality, simplifying integration into home entertainment systems.



Advanced Control

With a Bluetooth-enabled remote control housed in Delrin®, the Pendulum Integrated Amplifier offers intuitive control over unit functions and settings.



Elegant Design

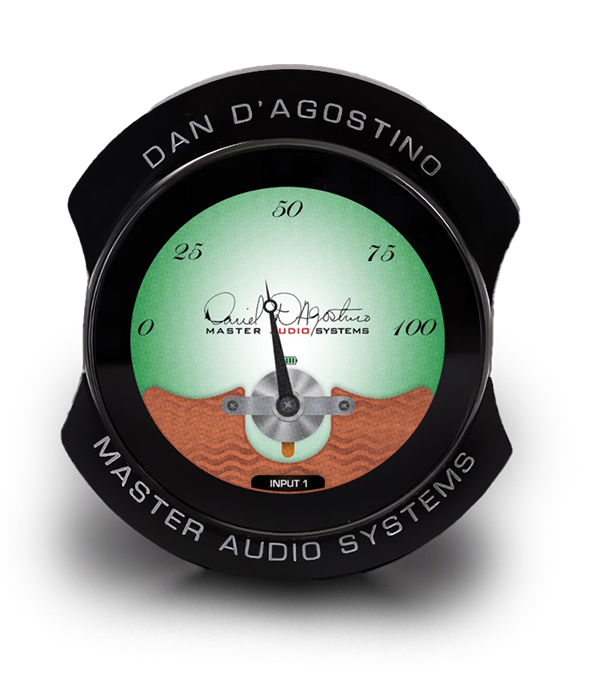

Highlighting its aesthetic appeal, the Pendulum Integrated Amplifier features an LCD display inspired by Swiss watch design, offering real-time updates on unit status, functions, and metadata. This refined detail adds a touch of sophistication to any audio setup.

Specs

Frequency Response

 20 Hz to 20 kHz, ±0.1 dB

Signal-to-Noise Ratio

 .015% @ 1 kHz, 120 W per channel @ 8Ω

Input Impedance

 1 MΩ

Output Power (per Channel)

 120 W @ 8Ω / 240 W @ 4Ω

Output Impedance

 0.1Ω

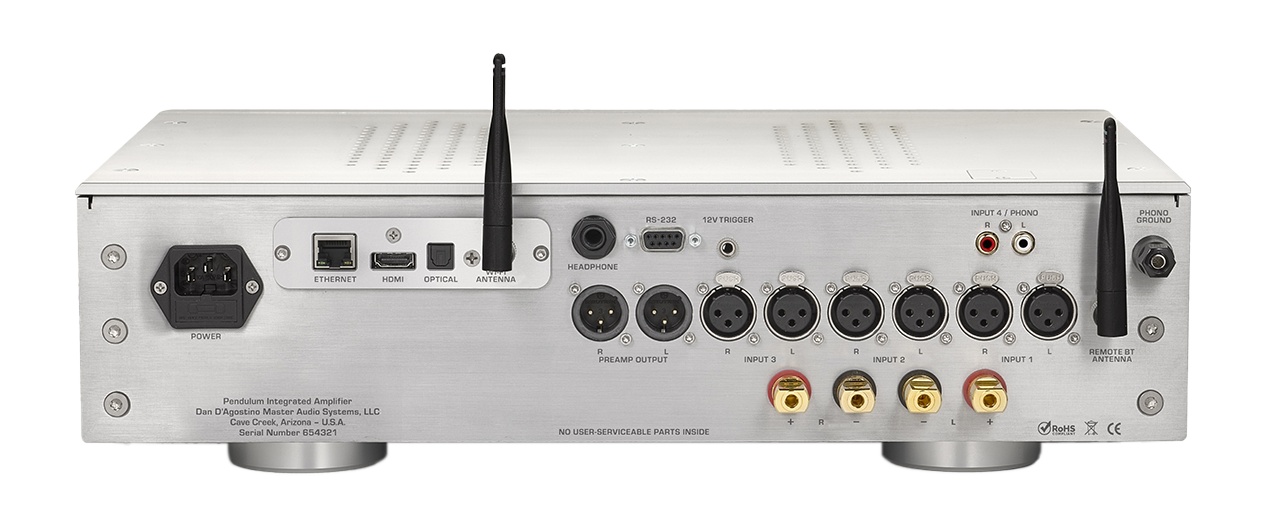

Analog Inputs

 3 pair balanced XLR stereo;1 pair unbalanced RCA stereo

Digital Inputs (with optional DSM)

 1 each Optical; RJ45 Ethernet; Wi-Fi; HDMI with eARC

Phono Loading (with optional Phonostage)

 47 kΩ, 1 kΩ, 500Ω, 250Ω, 100Ω, 50Ω

Phono Gain

 60 dB

Outputs

 1 pair balanced XLR stereo; ¼-inch headphone;2 pair binding posts

Control Protocol

 RS-232

Dimensions (WHD)

 17.0 x 4.65 x 14.0 in / 43.2 x 11.8 x 36.6 cm

Weight

 35 lb / 19.5 kg

Finish

 Silver or Black
